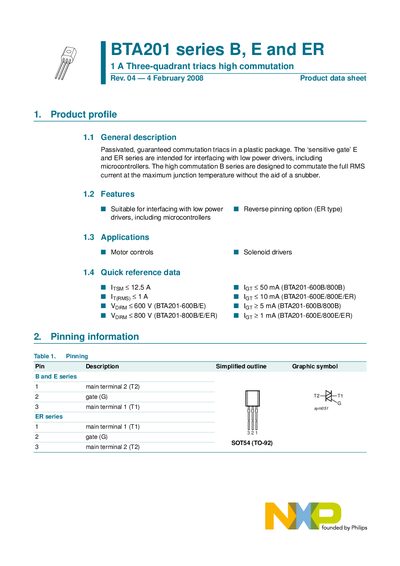

BTA201 series B, E and ER Triacs logic level product profile, introduces the features and characteristics of the product
The BTA201 series are three‑quadrant, high‑commutation triacs offered in B, E and ER variants. The B series is designed for full RMS current commutation without a snubber, while the E and ER series provide a sensitive gate for low‑power driver interfacing.
The document provides detailed pinning, ordering, limiting values, thermal, static and dynamic characteristics, as well as legal and contact information for designers and engineers.
| RMS on‑state current (I_RMS) | 12.5 A (t=20 ms) / 13.7 A (t=16.7 ms) |
|---|---|
| Maximum junction temperature (Tj) | 125 °C |
| Storage temperature range | -40 °C to +150 °C |
| Gate trigger current (I_GT) | 0.1 A (typical) |
The BTA201‑800 series can withstand up to 800 V repetitive peak off‑state voltage.
The typical gate trigger current is 0.1 A.
They can be stored from –40 °C to +150 °C.
