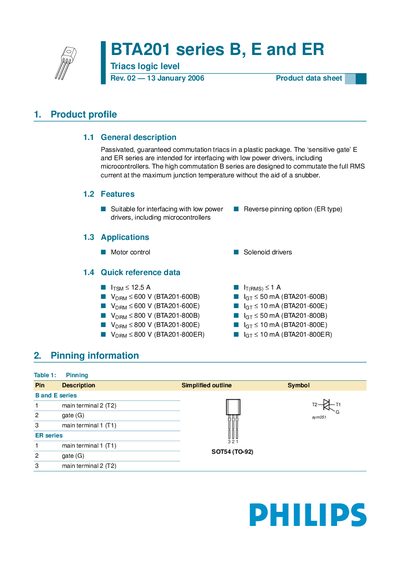

This datasheet provides detailed information on the BTA201 series B, E and ER triacs, including product description, features, applications, and quick reference data.
The BTA201 series includes B, E and ER logic‑level triacs offered in a plastic TO‑92 package. The B series is designed for full RMS current commutation, while the E and ER series are optimized for low‑power driver interfacing, such as microcontrollers. Typical applications are motor control and solenoid drivers.
Key specifications include a peak off‑state voltage of up to 800 V, RMS on‑state currents of 12.5 A (600 V version) to 13.7 A (800 V version), a maximum junction temperature of 125 °C, and a storage temperature rating of +150 °C. Detailed pinning, ordering information, thermal resistance, and dynamic characteristics are provided in the sheet.
| Peak off‑state voltage (Vprm) | 600 V (BTA201‑600 series) / 800 V (BTA201‑800 series) |
|---|---|
| Maximum RMS on‑state current (I_RMS) | 12.5 A (BTA201‑600 series) / 13.7 A (BTA201‑800 series) |
| Maximum junction temperature (Tj) | 125 °C |
| Maximum storage temperature (Tstg) | +150 °C |
| Gate trigger current (Igt) | 0.1 A (typical) |
| Package type | TO‑92 plastic single‑ended leaded (through‑hole) package, SOT‑54 |
The BTA201‑800 series can withstand a peak off‑state voltage of up to 800 V.
The BTA201‑600 series is rated for a maximum RMS on‑state current of 12.5 A.
They are supplied in a TO‑92 plastic single‑ended leaded (through‑hole) package, also described as SOT‑54.
Yes, the E and ER series are intended for interfacing with low‑power drivers, including microcontrollers.
