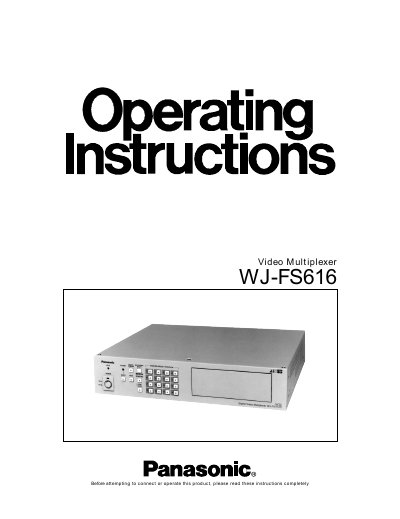

This document is an instruction manual for the Video Multiplexer WJ-FS616. The equipment generates and uses radio frequency energy, and if not installed and used properly, it may cause harmful interference to radio communications. It has been tested and found to comply with FCC rules for a Class A computing device, providing reasonable protection against such interference in a commercial environment. WARNING: To prevent fire or electric shock hazard, do not expose this appliance to rain or moisture. The lightning flash with arrowhead symbol is intended to alert the user to the presence of uninsulated 'dangerous voltage' within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. The serial number of this product may be found on the bottom of the unit. You should note the serial number of this unit in the space provided and retain this book as a permanent record of your purchase to aid identification in the event of theft.
The Panasonic WJ-FS616 is a video multiplexer designed to multiplex field signals from up to 16 video cameras and record images on a time lapse VCR. It supports various display modes, including 4, 7, 9, 10, 13, and 16-segment multiscreen, as well as spot sequence and electronic zoom functions. The unit allows for flexible camera control, including pan/tilt, lens zoom, focus, and iris adjustments via a single cable or RS-485 interface.
| Maximum connected cameras | 16 |
|---|---|
| Expansion capability | 64 cameras |
| Spot sequence steps | 32 |
| Multiscreen sequence steps | 5 |
| Operating temperature | -10°C - +50°C |
| Humidity rating | below 90 % |
| Input power source | 120 V AC 60 Hz |
Up to 16 cameras can be connected to the unit for monitoring.
Yes, the system allows expansion to up to 64 cameras.
A fully charged backup battery will back up settings for 72 hours in an ordinary environment.
