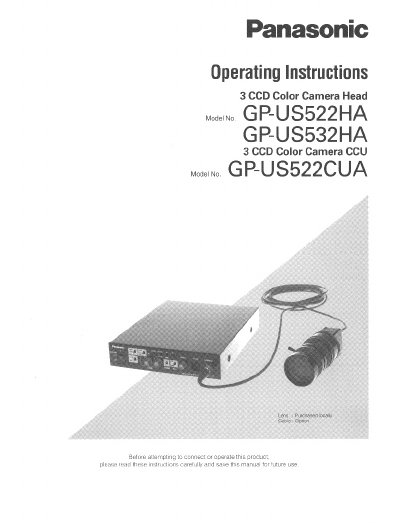

Panasonic GP-US522HA/532HA 3 CCD Camera Head Operating Instructions

About this manual

This manual provides operating instructions for the Panasonic GP-US522HA and GP-US532HA 3 CCD Color Camera Heads. The devices feature high-performance micro prism optical systems with three IT CCDs, offering 800 lines of horizontal resolution (750 lines for the US532 model) and a signal-to-noise ratio of 62 dB.

What's inside

• Preface
• Precautions
• Major Operating Controls
• Camera Head Functions
• Camera Control Unit
• Connections
• Setup Operation
• Specifications

Frequently asked questions

What is the minimum scene illumination for the GP-US522 model?

The minimum scene illumination is 5 lx at F2.8 with +18 dB gain.

What is the operating temperature range for the camera?

The camera must be used between 0°C and +45°C.

What is the required input power source for the unit?

The input power source is 12 V DC.
