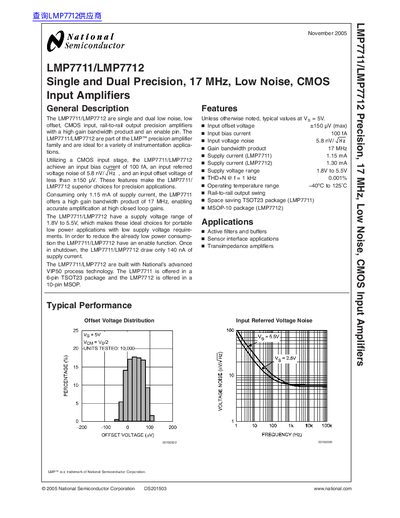

National Semiconductor LMP7711/LMP7712 Precision Amplifier Datasheet
The LMP7711 and LMP7712 are single and dual low noise, low offset, CMOS input, rail-to-rail output precision amplifiers with a high gain bandwidth product of 17 MHz. These devices feature an enable pin for power management and are part of the LMP™ precision amplifier family.
Read onlineNational Semiconductor LMP7711 specifications
| Gain Bandwidth Product | 17 MHz |
|---|---|
| Input Offset Voltage (Max) | +150 µV |
| Input Bias Current | 100 fA |
| Supply Voltage Range | 1.8V to 5.5V |
| Operating Temperature Range | -40°C to 125°C |
| Supply Current (LMP7711) | 1.15 mA |
| Package Type (LMP7711) | 6-pin TSOT23 |
| Package Type (LMP7712) | 10-pin MSOP |
Source: National Semiconductor LMP7711/LMP7712 Precision Amplifier Datasheet
All National Semiconductor LMP7711 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the applications for these amplifiers?
They are ideal for active filters and buffers, sensor interface applications, and transimpedance amplifiers.
From: National Semiconductor LMP7711/LMP7712 Precision Amplifier Datasheet
What is the input voltage noise?
The input referred voltage noise is 5.8 nV/√Hz at 1 kHz.
From: National Semiconductor LMP7711/LMP7712 Precision Amplifier Datasheet
What is the maximum supply voltage range for the LMP7711?
The device operates with a supply voltage range of 1.8V to 5.5V.
How much supply current does the LMP7711 draw in shutdown mode?
In shutdown mode, the amplifier draws only 140 nA of supply current.
