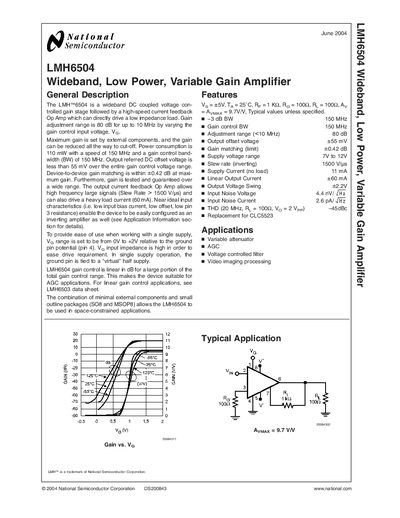

The LMH6504 is a wideband, low power, variable gain amplifier from Texas Instruments. Its maximum gain is 80 dB, bandwidth is 10 MHz, and it can directly drive low impedance loads.
The LMH6504 is a DC‑coupled voltage‑controlled gain stage followed by a high‑speed current‑feedback op‑amp that can directly drive low‑impedance loads. It offers a gain adjustment range of up to 80 dB for frequencies below 10 MHz and maintains a flat gain response up to 150 MHz.
Designed for single‑supply operation, the device operates from 7 V to 12 V, consumes about 110 mW, and provides a high slew rate (>1500 V/µs) with a linear output current capability of 60 mA. Its small SO8 and MSOP8 packages make it suitable for space‑constrained applications.
| Supply voltage range | 7 V to 12 V |
|---|---|
| Power consumption | 110 mW |
| Gain adjustment range | 80 dB (up to 10 MHz) |
| Bandwidth (3‑dB) | 150 MHz |
| Slew rate (inverting) | 1500 V/µs |
| Linear output current | 60 mA |
| Output offset voltage | < 55 mV |
| Gain matching (limit) | +0.42 dB |
The device operates from 7 V to 12 V.
It can source up to 60 mA of linear output current.
The gain can be adjusted up to 80 dB for frequencies below 10 MHz.
The inverting slew rate is specified as 1500 V/µs.
