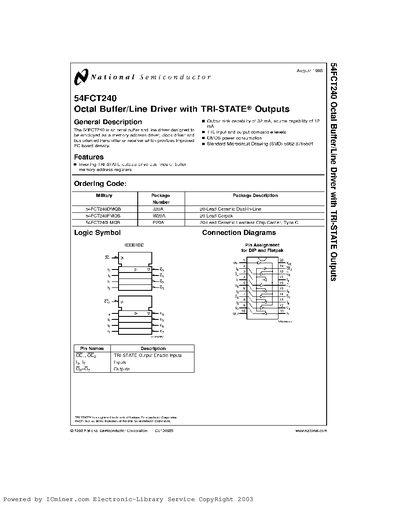

The document details the 54FCT240, an octal buffer and line driver featuring inverting TRI-STATE outputs. It is designed to be employed as a memory address driver, clock driver, or bus-oriented transmitter/receiver to improve PC board density.
Key features include output sink capability of 32 mA and source capability of 12 mA, with TTL input and output compatible levels. The device supports standard Microcircuit Drawing (SMD) 5962-8765504 and is available in various military packages including Ceramic Dual-In-Line, Flatpak, and Leadless Chip Carrier.
| Output sink capability | 32 mA |
|---|---|
| Output source capability | 12 mA |
| Supply Voltage (Military) | +4.5V to +5.5V |
| Propagation Delay | 15 ns (Max) |
| Input HIGH Voltage | 2.0 V Min |
