Start here

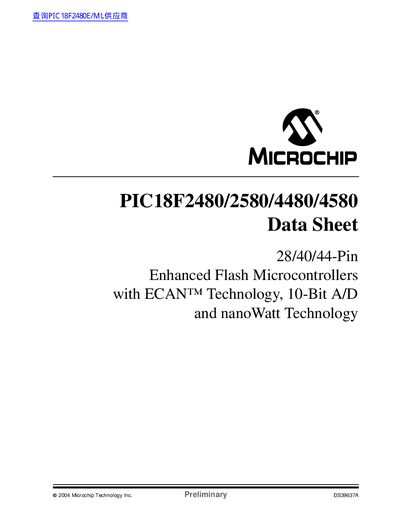

Microchip PIC18F2480/2580/4480/4580 Data Sheet
This document is a preliminary data sheet covering the PIC18F2480, PIC18F2580, PIC18F4480, and PIC18F4580 Enhanced Flash Microcontrollers. These devices are available in 28, 40, or 44-pin packages (PDIP, SOIC, TQFP, QFN) and feature ECAN™ technology for Controller Area Network communication.
Read onlineMICROCHIP PIC4480 specifications
| Operating Voltage Range | 2.0V to 5.5V |
|---|---|
| Program Memory (PIC18F2480/4480) | 16K bytes |
| Flash Erase/Write Cycles | 100,000 typical |
| A/D Converter Resolution | 10-bit |
All MICROCHIP PIC4480 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the typical current in sleep mode?
The sleep mode current is down to 0.1 uA typical.
Does this microcontroller support RS-485 operation?
Yes, the Enhanced Addressable USART module supports RS-485.
What is the typical retention time for Flash and Data EEPROM memory?
The Flash and Data EEPROM memory has a retention of greater than 40 years.
What are the typical currents for Idle and Sleep modes?
Idle mode current is down to 5.8 uA typical, while Sleep mode current is down to 0.1 uA typical.
How does the document describe the dead‑band delay behavior?
If the dead‑band delay value is increased after the dead‑band time has elapsed, the new value takes effect immediately, even if the PWM pulse is high.
What is the typical current consumption in Sleep mode?
The device draws about 0.1 µA typical in Sleep mode.
