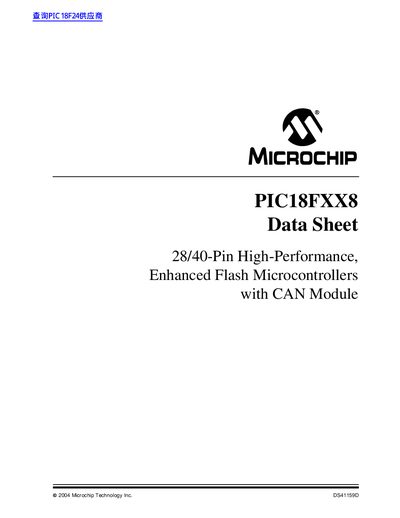

Microchip PIC18FXX8 Enhanced Flash Microcontrollers with CAN Module Data Sheet
This document is a data sheet for the Microchip PIC18FXX8 family of high-performance, enhanced flash microcontrollers. These devices feature an 8x8 single-cycle hardware multiplier and operate with clock speeds up to 40 MHz or 10 MHz with PLL active.
Key peripheral features include three external interrupt pins, four timer modules (Timer0 through Timer3), Capture/Compare/PWM (CCP) modules, and an Enhanced CCP module for advanced motor control. Communication capabilities are provided by a Master Synchronous Serial Port (MSSP) supporting SPI and I2C modes, as well as an addressable USART module.
MICROCHIP PIC18FXX8 specifications
| Operating Voltage Range | 2.0V to 5.5V |
|---|---|
| Maximum Clock Frequency | 40 MHz |
| Operating Speed | Up to 10 MIPS |
| Program Memory Addressing | Linear up to 2 Mbytes |
| Data Memory Addressing | Linear to 4 Kbytes |
| I/O Pins Current Sink/Source | 25 mA / 25 mA |
Source: Microchip PIC18FXX8 Enhanced Flash Microcontrollers with CAN Module Data Sheet
All MICROCHIP PIC18FXX8 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum operating frequency for these microcontrollers?
The devices support a DC to 40 MHz clock input.
From: Microchip PIC18FXX8 Enhanced Flash Microcontrollers with CAN Module Data Sheet
What is the maximum message bit rate supported by the CAN module?
Message bit rates up to 1 Mbps are supported.
From: Microchip PIC18FXX8 Enhanced Flash Microcontrollers with CAN Module Data Sheet
What is the maximum CAN bus speed?
The CAN module supports message bit rates up to 1 Mbps.
What voltage range does the PIC18FXX8 operate over?
It operates from 2.0 V to 5.5 V.
