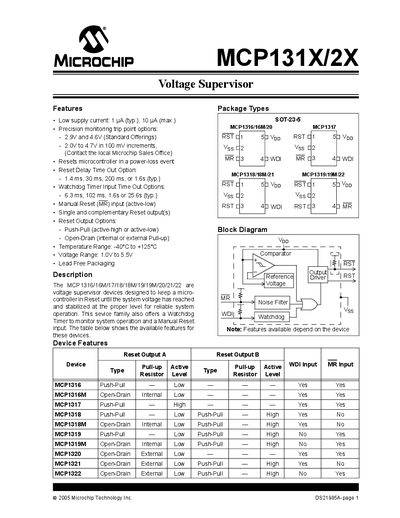

Microchip MCP131X/2X Voltage Supervisor Datasheet
The MCP131X/2X family of voltage supervisor devices monitors system voltage and provides a reset signal until the voltage reaches a stable level. The devices also include a watchdog timer and manual reset input, with selectable trip points and reset‑delay options.
The datasheet lists detailed electrical specifications, package options, and timing parameters for each part number (MCP1316, MCP1317, MCP1318, MCP1319, MCP1320‑22). It also describes reset‑output configurations, temperature ranges, and code‑protection features.
MICROCHIP MCP131X specifications
| Operating Voltage Range | 1.0 V to 5.5 V |
|---|---|
| Temperature Range | -40°C to +125°C |
| Supply Current (typical) | 5 µA |
| Reset Output Options | Push‑Pull (active‑high or active‑low) and Open‑Drain |
All MICROCHIP MCP131X documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the operating voltage range of the MCP131X/2X devices?
The devices operate from 1.0 V up to 5.5 V.
What reset output types are available?
Both push‑pull (active‑high or active‑low) and open‑drain (with internal or external pull‑up) outputs are supported.
What is the low supply current of the MCP131X/2X devices?
The devices draw as little as 1 pA typical, with a maximum of 10 µA.
What voltage range can the MCP131X/2X operate over?
They operate from 1.0 V up to 5.5 V supply voltage.
