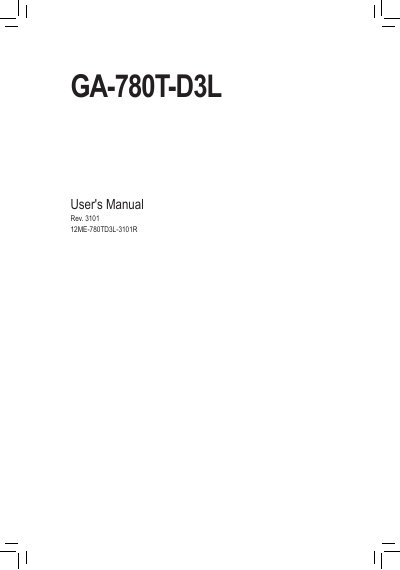

Gigabyte GA-780T-D3L Motherboard User Manual
This manual covers all aspects of the GA-780T-D3L motherboard, including box contents, layout, block diagram, and detailed hardware installation steps such as CPU, memory, and expansion card installation. It also explains BIOS configuration, power management, and unique Gigabyte features like Xpress Recovery and EasyTune.
Additional sections guide users through driver installation, SATA and audio configuration, and include an appendix with troubleshooting FAQs, regulatory statements, and worldwide support contact information. This manual is written in Chinese.
Gigabyte GA-780T-D3L specifications
| CPU Socket | AM3+ |
|---|---|
| North Bridge Chipset | AMD 760G |
| South Bridge Chipset | AMD SB710 |
| Memory Slots | 2 x DDR3 DIMM, up to 8 GB |
| Supported DDR3 Speeds | 1666 (OC)/1333/1066 MHz |
| Audio Codec | Realtek ALC887 |
| LAN | Realtek GbE 10/100/1000 Mbit |
| PCI Express Slots | 1 × PCIe x16, 4 × PCIe x1 |
| PCI Slots | 2 × PCI |
| SATA Connectors | 6 × 3 Gb/s SATA ports |
| USB Ports | Up to 10 × USB 2.0/1.1 (6 back, 4 internal) |
All Gigabyte GA-780T-D3L documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How many USB ports does the GA-780T-D3L motherboard support?
It provides up to 10 USB 2.0/1.1 ports – six on the back panel and four via internal headers.
What CPU socket does the GA-780T-D3L motherboard use?
The board uses an AM3+ socket compatible with AMD AM3+ FX, Phenom II, and Athlon II processors.
What precautions should I take before installing the GA-780T-D3L motherboard?
Before installation, verify the case size matches the board, disconnect power, avoid static discharge by using an anti‑static wrist strap or touching metal, and handle the board by its edges.
Which BIOS settings can be configured on this motherboard?
The BIOS provides Standard CMOS settings, Advanced BIOS features, Integrated Peripherals, Power Management, and PC Health status among others.
How many SATA ports are available on this motherboard?
There are six SATA 3 Gb/s connectors for storage devices.
Where can I find the warranty terms for the GA-780T-D3L?
Warranty information is provided in the “Warranty Information” section near the end of the manual (pages 43‑44).
