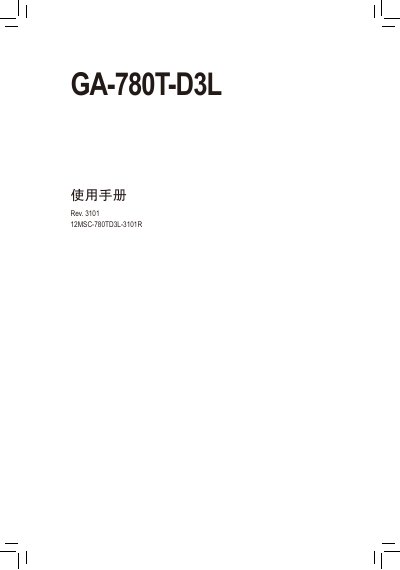

GA-780T-D3L User Manual, introduces the detailed information of hardware installation, BIOS program setting and driver installation
This manual guides users through hardware installation, including CPU, memory, and expansion cards, and explains the layout of rear I/O connectors. It also covers safety precautions, anti‑static handling, and required tools for assembling the board.
Later sections describe BIOS setup options, driver installation, unique Gigabyte features such as Xpress Recovery and Easy Energy Saver, and provide troubleshooting, warranty information, and service contacts. This manual is written in Chinese.
| Chipset | AMD 760G northbridge, AMD SB710 southbridge |
|---|---|
| Network | Realtek GbE LAN, 10/100/1000 Mbit/s |
| Expansion Slots | 1 PCIe x16 (full‑speed), 4 PCIe x1 (PCIe 2.0), 2 PCI slots |
| USB Ports | Up to 10 USB 2.0/1.1 ports (6 rear, 4 via internal headers) |
It supports up to ten USB 2.0/1.1 ports – six are on the rear panel and four are available through internal headers.
Yes, the motherboard can use ECC memory when paired with a compatible CPU.
It includes a Realtek GbE LAN chip providing 10/100/1000 Mbit/s Ethernet connectivity.
