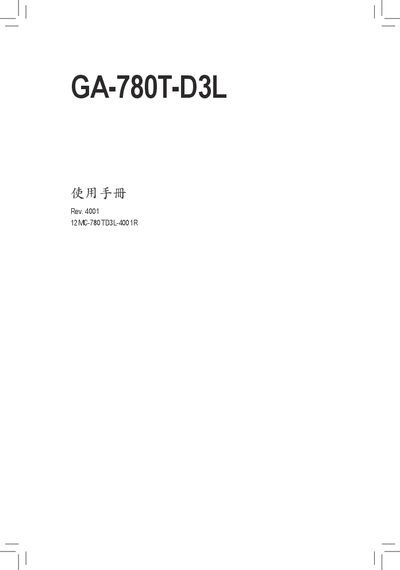

GA-780T-D3L User Manual introduces the hardware installation, BIOS configuration settings and driver installation of the motherboard
This manual explains how to install the GA-780T-D3L motherboard safely, covering hardware mounting, connector placement, and anti‑static precautions. It also includes a checklist of required accessories and guidance for updating BIOS or drivers.
The document details BIOS setup options, chipset features, supported CPUs, memory configurations, and I/O options such as SATA, USB, and PCI‑Express slots. Warranty terms and regulatory compliance information are provided at the end of the guide.
| Supported Chipset (Northbridge) | AMD 760G |
|---|---|
| SATA Ports | 6 × SATA 3 Gb/s |
| PCI‑Express Slots | 1 × PCI‑Express x16, 4 × PCI‑Express x1 |
| Audio Codec | Realtek ALC887 |
| Power Connectors | 1 × 24‑pin ATX, 1 × 4‑pin ATX 12 V |
There are six SATA 3 Gb/s connectors for storage devices.
Warranty information is provided in the “Warranty Information” section near the end of the manual (pages 43‑44).
