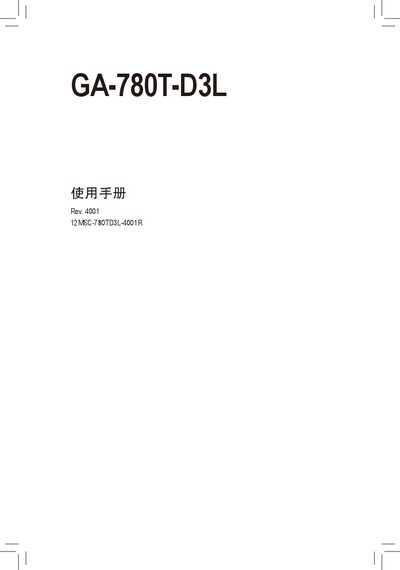

GA-780T-D3L User Manual, introduces the product's hardware installation, BIOS program settings and driver installation
This manual guides users through safe hardware installation of the GA-780T-D3L motherboard, including anti‑static precautions, power‑off procedures, and connector handling. It also explains BIOS setup options such as Standard CMOS, Advanced BIOS, Integrated Peripherals and Power Management.
The document lists the technical specifications of the board—CPU socket, supported processors, chipset, memory, audio, networking, expansion slots, SATA and USB ports—and provides after‑sales service and warranty details for Gigabyte customers in China. This manual is written in Chinese.
| Supported CPUs | AMD AM3+ FX and AMD AM3 Phenom II / Athlon II processors |
|---|---|
| Chipset | Northbridge AMD 760G, Southbridge AMD SB710 |
| Memory type | DDR3 1666/1333/1066 MHz, supports ECC |
| Audio codec | Realtek ALC887, 5.1/7.1 channel support |
| Expansion slots | 1 PCIe x16, 4 PCIe x1, 2 PCI |
| SATA ports | 6 SATA 3 Gb/s ports, RAID 0/1/10/JBOD |
Before installation, verify the case size matches the board, disconnect power, avoid static discharge by using an anti‑static wrist strap or touching metal, and handle the board by its edges.
The BIOS provides Standard CMOS settings, Advanced BIOS features, Integrated Peripherals, Power Management, and PC Health status among others.
The board includes six SATA 3 Gb/s connectors that support RAID 0, RAID 1, RAID 10 and JBOD.
Gigabyte provides a three‑year nationwide warranty for the GA-780T-D3L motherboard, subject to proper use and registration.
