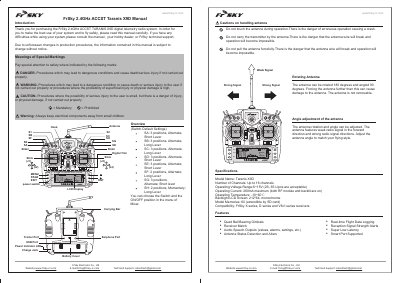

This document is the user manual of FrSky 2.4GHz ACCST TARANIS X9D, which introduces the features and usage of the product
The FrSky Taranis X9D is a digital telemetry radio system designed for safe and effective flight control. The device features a 212x64 monochrome LCD screen, support for up to 16 channels, and compatibility with FrSky X series, D series, and V8-II series receivers. It includes an internal RF module (XJT) and an external module slot for expanded functionality. This manual is written in Chinese.
| Number of Channels | Up to 16 channels |
|---|---|
| Operating Voltage Range | 6~15V |
| Operating Current | 260mA maximum |
| Operating Temperature | -10~60℃ |
| LCD Screen Resolution | 212*64 |
| Model Memories | 60 (extendible by SD card) |
The system is compatible with FrSky X series, D series, and V8-II series receivers.
There are three failsafe modes: No Pulse, Hold, and Custom.
Move the cursor to 'Range' and press ENTER to enter range check mode, which decreases the effective distance to 1/30.
