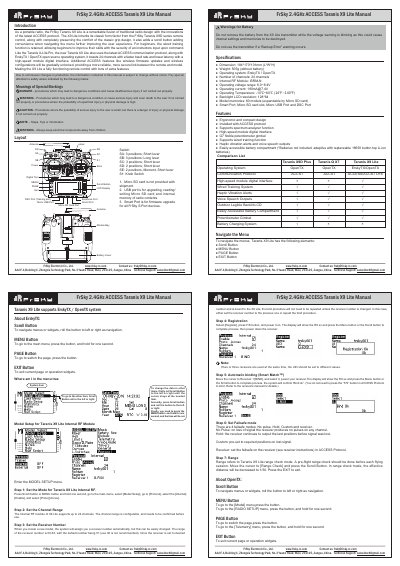

This is a manual for a remote controller produced by FrSky, the product model is Taranis X9 Lite, and the remote controller supports the 2.4GHz ACCESS protocol.
The FrSky Taranis X9 Lite is a portable radio controller that combines traditional design with the latest ACCESS protocol. It features an ergonomic grip, a scroll button for menu navigation, and supports the ErskyTX and OpenTX open-source operating systems. The device offers 24 channels and includes features such as haptic vibration alerts, voice speech outputs, and a spectrum analyzer function.
| Dimension | 184*170*101mm (L*W*H) |
|---|---|
| Weight | 505g (without battery) |
| Operating system | ErskyTX / OpenTX |
| Number of channels | 24 channels |
| Internal RF Module | ISRM-N |
| Operating voltage range | 6.0~8.4V |
| Operating current | [email protected] |
| Operating Temperature | -10℃~60℃ (14℉~140℉) |
| Backlight LCD resolution | 128*64 |
| Model memories | 60 models (expandable by Micro SD card) |
The Taranis X9 Lite supports the ErskyTX and OpenTX open-source operating systems.
The Taranis X9 Lite boasts 24 channels with a faster baud rate and lower latency.
The four failsafe modes are No pulse, Hold, Custom, and receiver.
