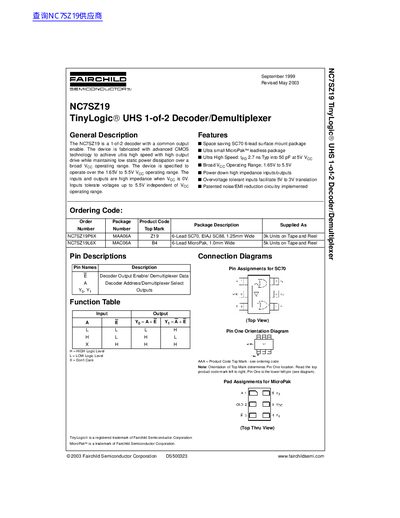

Fairchild NC7SZ19 TinyLogic UHS 1-of-2 Decoder/Demultiplexer Datasheet
The NC7SZ19 is a 1-of-2 decoder with a common output enable fabricated using advanced CMOS technology. It features ultra-high speed propagation delays (typical 2.7 ns into 50 pF at 5V) while maintaining low static power dissipation over a broad operating voltage range of 1.65V to 5.5V.
The device is available in two space-saving surface mount packages: the SC70 6-lead package (Order Code NC7SZ19P6X) and the MicroPak leadless package (Order Code NC7SZ19L6X). Both versions offer overvoltage tolerant inputs facilitating 5V to 3V translation.
Fairchild NC7SZ19 specifications
| Operating Voltage Range | 1.65 V to 5.55 V |
|---|---|
| Power‑Down Input/Output State | High‑impedance |
| Over‑Voltage Tolerance (Inputs) | Up to 5.5 V independent of VCC |
Source: Fairchild NC7SZ19 TinyLogic UHS 1-of-2 Decoder/Demultiplexer Datasheet
All Fairchild NC7SZ19 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the operating voltage range for the NC7SZ19?
The device operates over a Vcc range of 1.65V to 5.5V.
From: Fairchild NC7SZ19 TinyLogic UHS 1-of-2 Decoder/Demultiplexer Datasheet
Does the NC7SZ19 support power-down mode?
Yes, the inputs and outputs are high impedance when Vcc is 0V.
From: Fairchild NC7SZ19 TinyLogic UHS 1-of-2 Decoder/Demultiplexer Datasheet
What are the recommended operating voltage limits for the NC7SZ19?
The recommended operating supply voltage is 1.65 V to 5.50 V.
From: Fairchild NC7SZ19 TinyLogic UHS 1-of-2 Decoder/Demultiplexer Datasheet
What is the maximum input current allowed for the device?
The absolute maximum input diode current is –50 mA.
From: Fairchild NC7SZ19 TinyLogic UHS 1-of-2 Decoder/Demultiplexer Datasheet
