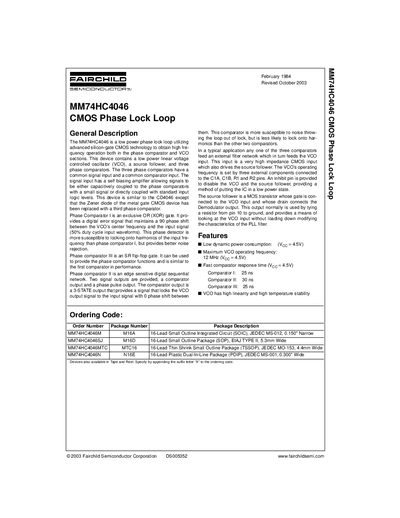

Fairchild MM74HC4046 CMOS Phase Lock Loop Datasheet
Datasheet 18 pages · 257 KB · EN
The MM74HC4046 is a low power phase lock loop utilizing advanced silicon-gate CMOS technology. It contains a linear voltage controlled oscillator (VCO), a source follower, and three distinct phase comparators: an exclusive OR gate, an SR flip-flop gate, and an edge sensitive digital sequential network.
Read onlineFairchild MM74HC4046 specifications
| Supply Voltage (VCC) range | 0.5 V to 7.0 V |
|---|---|
| Maximum VCO operating frequency | 12 MHz (VCC = 4.5 V) |
| Phase comparator I response time | 25 ns |
| Phase comparator II response time | 30 ns |
| Phase comparator III response time | 25 ns |
All Fairchild MM74HC4046 documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the supply voltage range for the MM74HC4046?
The device operates from 0.5 V up to 7.0 V supply voltage.
What is the maximum VCO operating frequency?
The VCO can operate up to 12 MHz when VCC is 4.5 V.
