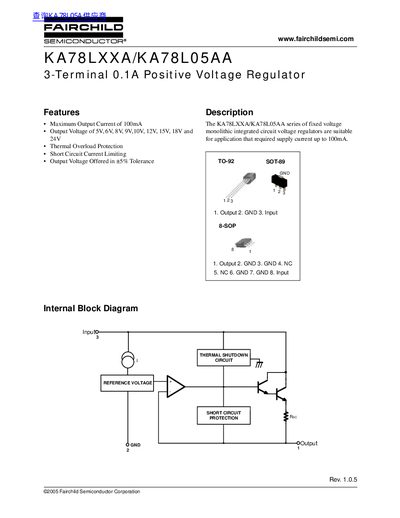

FAIRCHILD KA78LXXA/KA78L05AA 3-Terminal 0.1A Positive Voltage Regulator handbook
The document describes the KA78LXXA/KA78LO5AA series of monolithic integrated circuit voltage regulators. These devices are designed to provide a maximum output current of 100mA with output voltages ranging from 5V to 24V. Key features include thermal overload protection and short-circuit current limiting, making them suitable for applications requiring low supply currents.
Read onlineFairchild KA78L05AA specifications
| Maximum Output Current | 100mA |
|---|---|
| Operating Junction Temperature Range | 0 ~ +150 °C |
| Power Dissipation | <0.75W |
Source: FAIRCHILD KA78LXXA/KA78L05AA 3-Terminal 0.1A Positive Voltage Regulator handbook
All Fairchild KA78L05AA documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the key protection features of this regulator?
The device includes thermal overload protection and short circuit current limiting.
From: FAIRCHILD KA78LXXA/KA78L05AA 3-Terminal 0.1A Positive Voltage Regulator handbook
Is there a specific output voltage tolerance mentioned?
Yes, the output voltage is offered with a +5% tolerance.
From: FAIRCHILD KA78LXXA/KA78L05AA 3-Terminal 0.1A Positive Voltage Regulator handbook
What is the maximum output current of the KA78L series?
The regulators can supply up to 100 mA of output current.
From: Fairchild KA78LXXA/KA78L05AA Voltage Regulator Datasheet
How much power can the regulator dissipate safely?
The device is rated for a maximum power dissipation of 0.75 W.
From: Fairchild KA78LXXA/KA78L05AA Voltage Regulator Datasheet
