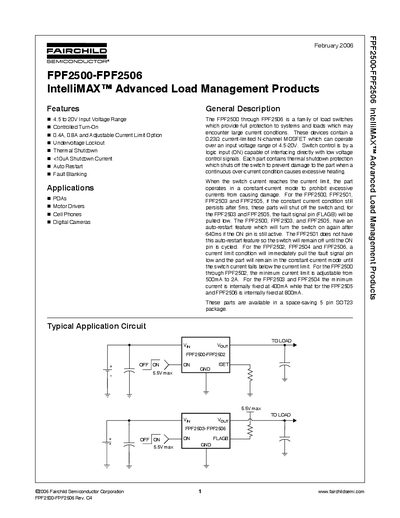

Fairchild FPF2500-FPF2506 IntelliMAX Advanced Load Management Products Datasheet
The FPF2500‑FPF2506 series are IntelliMAX™ advanced load‑management devices that provide controlled turn‑on, over‑current protection, thermal shutdown, and auto‑restart features. They are offered in a compact 5‑pin SOT‑23 (MA05B) package and support input voltages from 4.5 V to 20 V.
The datasheet details pin functions, absolute maximum ratings, recommended operating ranges, electrical characteristics, and typical performance graphs. It also includes dimensional outlines, trademark information, and product status definitions.
Fairchild FPF2500-FPF2506 specifications
| Current Limit Options | 0.4 A, 0.8 A, Adjustable |
|---|---|
| Under‑Voltage Lockout (UVLO) Threshold | 3.75 V – 4.00 V |
| Package | 5‑pin SOT‑23 (MA05B) |
