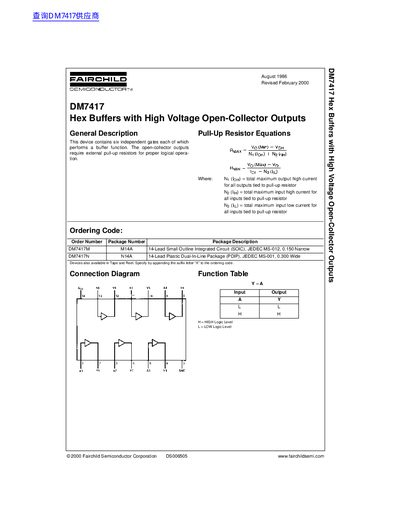

This is the datasheet of DM7417 Hex Buffers with High Voltage Open-Collector Outputs chip produced by Fairchild Semiconductor Corporation. The chip contains six independent gates, each of which performs a buffer function. External pull-up resistors are used for proper logical operation.
The document describes the Fairchild Semiconductor DM7417, an integrated circuit containing six independent buffers with high voltage open-collector outputs. These outputs require external pull-up resistors for proper logical operation. The datasheet provides ordering codes, connection diagrams, and a function table defining input-output relationships.
| Operating Temperature Range | 0°C to +70°C |
|---|---|
| Storage Temperature Range | -65°C to +150°C |
| Output Low Current (Max) | 40 mA |
| Propagation Delay Time (Low-to-High) | 10 ns |
The device features high voltage open-collector outputs which require external pull-up resistors for proper logical operation.
This device contains six independent gates, each performing a buffer function.
The absolute maximum output voltage rating for this device is 15V.
