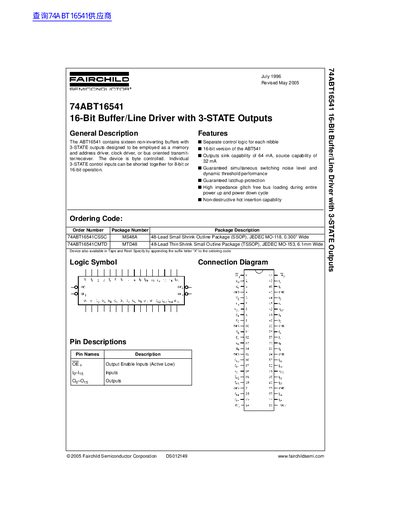

The document introduces the 74ABT16541 16-Bit Buffer/Line Driver manufactured by Fairchild Semiconductor Corporation. The device features sixteen non-inverting buffers with 3-STATE outputs, which can be used as a memory and address driver, clock driver, or bus-oriented transmitter/receiver. It has separate control logic for each nibble and can be operated in 8-bit or 16-bit mode. The device has high sink and source capability, guaranteed switching noise level and latchup protection, as well as glitch-free bus loading and non-destructive hot insertion capability.
The 74ABT16541 is a high-speed device containing sixteen non-inverting buffers with 3-STATE outputs. It is designed to function as a memory or address driver, clock driver, or bus-oriented transmitter/receiver. The device operates on a byte-controlled basis where individual control inputs can be shorted for either 8-bit or full 16-bit operation.
| Number of Buffers | Sixteen non-inverting buffers |
|---|---|
| Output Sink Capability | 64 mA |
| Output Source Capability | 32 mA |
| Supply Voltage Range | 4.5V to 5.5V |
| Package Type | SSOP, TSSOP |
It contains sixteen non-inverting buffers with 3-STATE outputs designed to be employed as a memory and address driver, clock driver, or bus oriented transmitter/receiver.
Yes, individual 3-STATE control inputs can be shorted together for either 8-bit or 16-bit operation.
The maximum supply voltage (VCC) is 5.5V.
