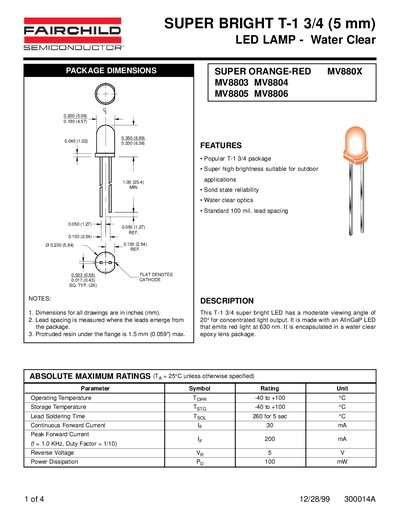

This document is the specification of SUPER BRIGHT T-1 3/4 (5 mm) LED LAMP - Water Clear, including product parameters, characteristics, appearance size and other information.
The SUPER BRIGHT T-1 3/4 LED lamp is a water‑clear, high‑brightness device in a T‑1 3/4 (5 mm) package, suitable for outdoor applications. It features a moderate 20° viewing angle, solid‑state reliability, and standard 100 mil lead spacing.
The sheet provides detailed electrical and optical characteristics, including forward voltage, luminous intensity, wavelength, and temperature ratings, as well as absolute maximum ratings and performance curves. Legal disclaimer and life‑support policy information are also included.
| Operating Temperature | -40 to +100 °C |
|---|---|
| Storage Temperature | -40 to +100 °C |
| Continuous Forward Current | 30 mA |
| Peak Forward Current | 200 mA |
| Reverse Voltage | 5 V |
| Power Dissipation | 100 mW |
| Typical Luminous Intensity (MV8803) | 940 mcd |
| Typical Forward Voltage (MV8803) | 2.1 V |
| Peak Wavelength | 630 nm |
| Viewing Angle | 20° |
| Lead Spacing | 0.100 in (2.54 mm) |
The continuous forward current is rated at 30 mA.
The peak forward current is rated at 200 mA.
The device operates from –40 °C to +100 °C.
Typical luminous intensity for MV8803 is 940 mcd.
