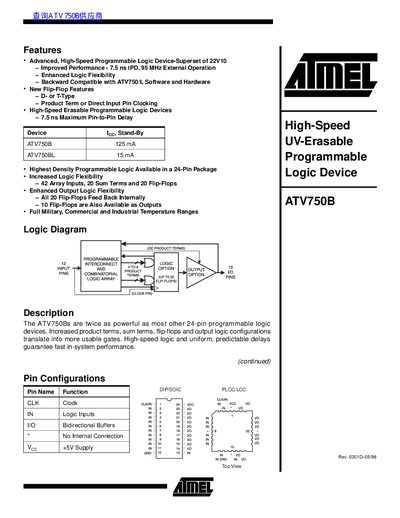

ATMEL AT750B DATA SHEET
The ATV750B is a high-density, high-speed UV-erasable programmable logic device (PLD) available in a 24-pin package. It offers improved performance with a maximum pin-to-pin delay of 7.5 ns and supports external operation up to 95 MHz. The device is backward compatible with ATV750/L software and hardware.
Read onlineAtmel ATV750B specifications
| Maximum Pin-to-Pin Delay | 7.5 ns |
|---|---|
| External Operation Frequency | 95 MHz |
| Logic Inputs | 42 Array Inputs |
| Sum Terms | 20 |
| Flip-Flops | 20 |
| Operating Temperature (Military) | -55°C to +125°C |
| Supply Voltage | 5V |
Source: ATMEL AT750B DATA SHEET
All Atmel ATV750B documents by type
Ratings, dimensions and ordering codes, for selection and design work.
How to use the product for one specific task, with worked examples.
Questions answered in these manuals
What is the maximum operating frequency for external operation?
The device supports up to 95 MHz of external operation.
From: ATMEL AT750B DATA SHEET
Is the ATV750B compatible with previous software versions?
Yes, it is backward compatible with ATV750/L Software and Hardware.
From: ATMEL AT750B DATA SHEET
How do I program the ATF750C/CL?
Use cross‑programming to load an existing ATV750B/BL JEDEC fuse‑map file into the ATF750C/CL via supported third‑party programmers or Atmel WinCUPL.
How many registers does each device have?
Both the ATV750 and ATV750B contain 20 registers.
Can the I/O pins be programmed for polarity control?
Yes, each I/O pin includes programmable polarity control.
What are the AC timing parameters used for Atmel PLDs?
Atmel PLDs use parameters such as tpp, tpps, tppg, top, tepe, and others to describe pin‑to‑pin, feedback, and combinatorial delays.
From: Atmel PLD Architectures Simplify Timing Calculation Application Note
