Key facts
- Brand
- Atmel
- Model
- AT88SC0808C
- Category
- Other Electronics
- Documents
- 2
- Languages
- EN
- Last added
- 2012-03-27
Start here

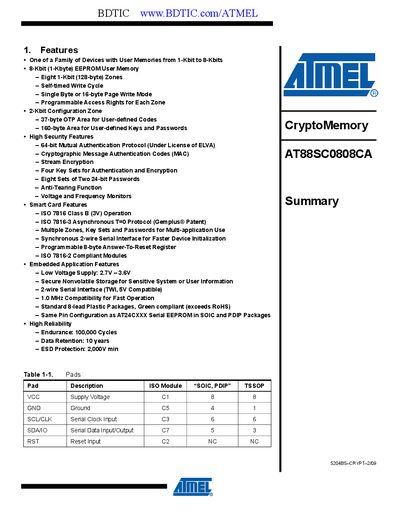

Atmel AT88SC0808CA CryptoMemory Datasheet
The AT88SC0808CA is a high‑performance secure memory providing 8 Kbit of user EEPROM organized into eight 128‑byte zones. It offers mutual authentication, stream encryption, programmable access rights, and ISO‑7816 smart‑card compatibility, making it suitable for secure embedded and smart‑card applications.
The datasheet lists the device’s electrical characteristics, pin descriptions, timing diagrams, and maximum ratings. It also details the 2‑wire serial interface operation, synchronous and asynchronous protocols, and mechanical dimensions for the 8‑lead SOIC, PDIP and TSSOP packages.
Atmel AT88SC0808C specifications
| User Memory | 8 Kbit (1 Kbyte) EEPROM |
|---|---|
| Supply Voltage | 2.7 V to 3.6 V |
| Data Retention | 10 years |
| Endurance | 100,000 cycles |
| Standby Current | 100 µA |
| Supply Current (Async READ, 3.57 MHz) | 5 mA |
| Async Clock Frequency | 1 – 4 MHz |
| Key Sets | Up to 4 unique sets |
All Atmel AT88SC0808C documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the supply voltage range for the AT88SC0808CA?
The device operates from 2.7 V to 3.6 V.
How many authentication key sets can be used?
The chip supports up to four unique key sets.
What is the supply voltage range for the AT88SC0808C?
It operates from 2.7 V to 5.5 V.
How many user memory zones does the device have?
The EEPROM user memory is divided into eight 128‑byte zones.
