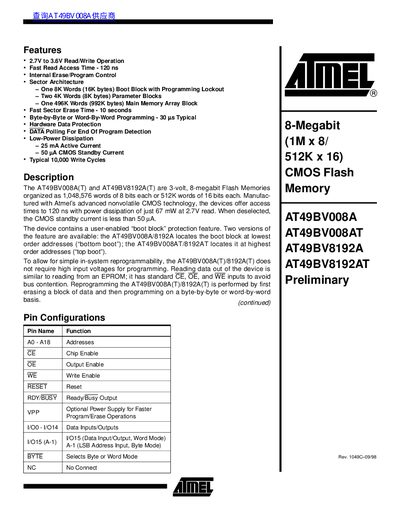

ATMEL AT49BV008A/AT49BV008AT/AT49BV8192A/AT49BV8192AT handbook
Datasheet 16 pages · 250 KB · EN
The document details the specifications of the AT49BV008A(T) and AT49BV8192A(T), which are 3-volt, 8-megabit Flash Memories organized as 1,048,576 words of 8 bits each or 512K words of 16 bits each. These devices feature fast read access times of 120 ns and offer internal erase/program control with sector architecture.
Read onlineAtmel AT49BV8192A specifications
| Supply Voltage Range | 2.7V to 3.6V |
|---|---|
| Read Access Time | 120 ns |
| Active Current | 25 mA |
| Standby Current | 50 pA |
| Write Cycles | 10,000 Write Cycles |
| Erase Time | 10 seconds |
Source: ATMEL AT49BV008A/AT49BV008AT/AT49BV8192A/AT49BV8192AT handbook
All Atmel AT49BV8192A documents by type
Datasheet 1
Ratings, dimensions and ordering codes, for selection and design work.
Other documents 1
Questions answered in these manuals
What voltage range supports read and write operations?
The device operates with voltages between 2.7V and 3.6V for both reading and writing.
From: ATMEL AT49BV008A/AT49BV008AT/AT49BV8192A/AT49BV8192AT handbook
How long does a sector erase operation take?
A fast sector erase takes approximately 10 seconds to complete.
From: ATMEL AT49BV008A/AT49BV008AT/AT49BV8192A/AT49BV8192AT handbook
