Start here

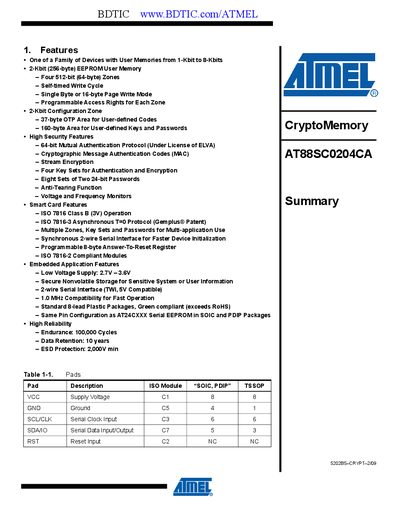

Atmel AT88SC0204CA CryptoMemory Handbook
The AT88SC0204CA is a secure memory device from Atmel’s CryptoMemory family. It offers 2 Kbit (256‑byte) EEPROM organized into four 64‑byte zones with programmable access rights, mutual authentication, MAC, and stream encryption.
The device operates from 2.7 V to 3.6 V, supports ISO 7816 smart‑card protocols, and includes extensive protection features such as ESD resistance, anti‑tearing, and temperature monitoring. Detailed electrical characteristics, pin descriptions, and timing diagrams are provided for both asynchronous and synchronous modes.
Atmel AT88SC0204C specifications
| User Memory | 2 Kbit (256‑byte) EEPROM |
|---|---|
| Data Retention | 10 years |
| Endurance | 100,000 write cycles |
| ESD Protection | 2,000 V min |
All Atmel AT88SC0204C documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
How much user memory does the AT88SC0204CA provide?
It provides 2 Kbit (256 byte) EEPROM organized in four zones.
What is the endurance rating of the device?
The device is rated for 100,000 write cycles.
What is the supply voltage range for the AT88SC0204C?
The device operates from 2.7 V up to 5.5 V.
How many user zones does the AT88SC0204C have and how large are they?
It has four user zones, each 64 bytes (512 bits) in size.
