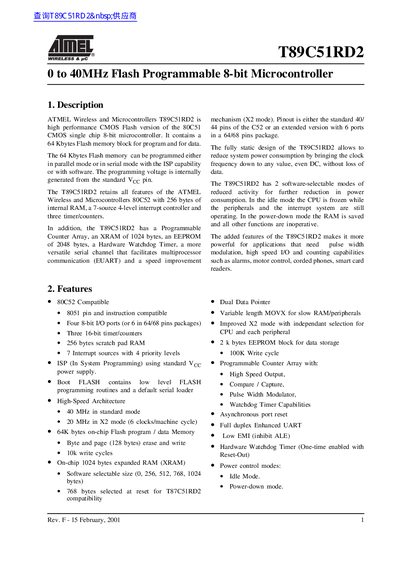

Atmel T89C51RD2 8-bit Microcontroller Datasheet
The T89C51RD2 is a high‑performance CMOS flash version of the 80C51 family, offering up to 64 KB of on‑chip flash, 2 KB EEPROM, and 1 KB XRAM. It supports 40 MHz operation in standard mode and 20 MHz in X2 mode, with multiple power‑supply options and a wide temperature range.
This datasheet includes a description of the device, feature list, pin‑out diagrams, special function register (SFR) mapping, clock waveform timing, ordering information, and package options, allowing designers to integrate the microcontroller into their applications.
Atmel T89C51RD2 specifications
| Flash memory size | 64 KB |
|---|---|
| EEPROM size | 2 KB |
| XRAM size | 1 KB |
| Maximum clock frequency | 40 MHz (X1 mode), 20 MHz (X2 mode) |
| Temperature range | 0 °C – +70 °C (commercial), –40 °C – +85 °C (industrial) |
| I/O ports | Four 8‑bit ports (six in 64/68‑pin packages) |
| Interrupt sources | 7 sources with 4 priority levels |
