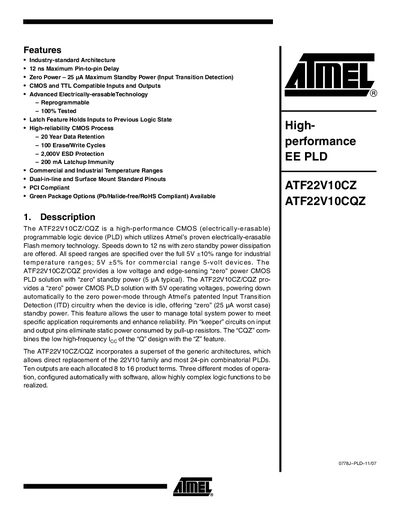

ATMEL ATF22V10CZ ATF22V10CQZ handbook
This document describes the ATF22V10CZ/CQZ, a high-performance CMOS electrically-erasable programmable logic device (PLD) utilizing Atmel's Flash memory technology. The device offers speeds down to 12 ns and features zero standby power dissipation through patented Input Transition Detection circuitry.
Read onlineAtmel ATF22V10C specifications
| Maximum Pin-to-pin Delay | 12 ns |
|---|---|
| Standby Power (Zero Power) | 25 pA maximum |
| Data Retention | 20 Year |
| Erase/Write Cycles | 100 |
| ESD Protection | 2,000V |
| Latchup Immunity | 200 mA |
| Operating Voltage (Industrial) | 5V +10% |
All Atmel ATF22V10C documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum standby power of this device?
The maximum standby power is 25 pA when using Input Transition Detection.
How many erase/write cycles does the device support?
The device supports 100 Erase/Write Cycles.
What is the maximum pin-to-pin delay of the ATF22V10C?
The device offers speeds down to a maximum pin-to-pin delay of 5 ns.
From: ATMEL Highperformance EE PLD ATF22V10C ATF22V10CQ handbook
Is the ATF22V10C RoHS compliant?
Yes, Green Package Options that are Pb/Halide-free and RoHS Compliant are available.
From: ATMEL Highperformance EE PLD ATF22V10C ATF22V10CQ handbook
