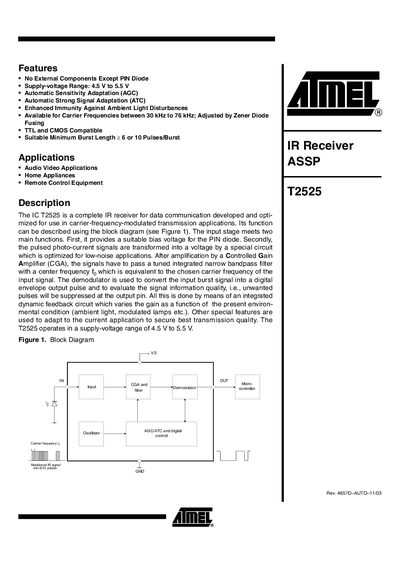

Atmel T2525 IR Receiver ASSP Datasheet
Datasheet 10 pages · 220 KB · EN
The Atmel T2525 is an integrated IR receiver ASSP designed for carrier‑frequency‑modulated remote‑control applications. It includes a PIN‑diode bias stage, a controlled‑gain amplifier, a narrow‑bandpass filter and a demodulator with automatic gain control and ambient‑light suppression.
The document provides detailed pin configuration, absolute maximum ratings, electrical characteristics, typical performance curves, chip dimensions, and ordering codes for various carrier‑frequency options.
Atmel T2525 specifications
| Supply voltage | 2.7 V to 5.5 V |
|---|---|
| Maximum clock rate | 5 MHz |
| Endurance | 1 Million write cycles |
| Data retention | >100 years |
| Operating temperature range | -40 °C to +125 °C |
| Page mode size | 64 bytes |
All Atmel T2525 documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
