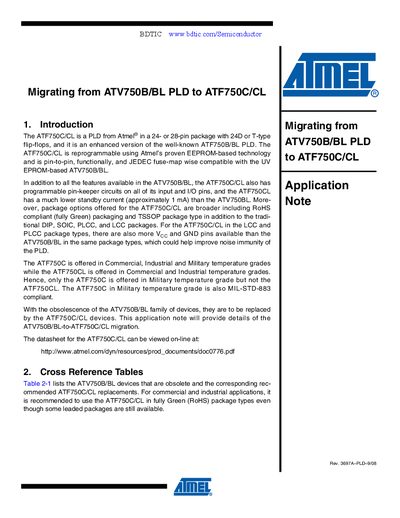

This application note describes the differences between the ATV750B/BL PLD and the ATF750C/CL PLD, including features, packages, temperature grades, etc.
This document describes the migration from the UV‑EPROM based ATV750B/BL PLD family to the EEPROM‑based ATF750C/CL family. It outlines compatibility, new features such as programmable pin‑keeper circuits, lower standby current, additional power pins, and the availability of RoHS‑compliant packages.
The note also provides cross‑reference tables, power‑consumption considerations, programming guidance, and a list of third‑party programmers that support cross‑programming of JEDEC fuse‑map files into the ATF750C/CL.
| Standby current (ATF750CL) | 1 mA (max) |
|---|---|
| Standby current (ATV750BL) | 30 mA (max) |
| Package options | DIP, SOIC, PLCC, LCC, TSSOP, RoHS‑compliant |
| Temperature grades (ATF750C) | Commercial, Industrial, Military |
Use cross‑programming to load an existing ATV750B/BL JEDEC fuse‑map file into the ATF750C/CL via supported third‑party programmers or Atmel WinCUPL.
