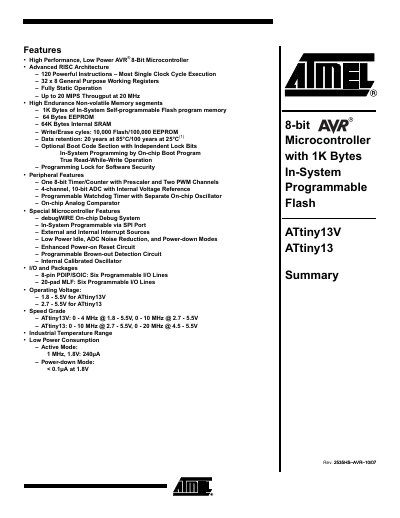

Atmel ATtiny13V/ATtiny13 Data Sheet
This document is a technical datasheet for the Atmel ATtiny13 and ATtiny13V low-power CMOS 8-bit microcontrollers based on the AVR enhanced RISC architecture. It highlights key features such as high-performance execution with up to 20 MIPS throughput, non-volatile memory segments including 1K Bytes of Flash and 64 Bytes of EEPROM, and various peripheral features like a 4-channel ADC and Timer/Counter.
The datasheet provides detailed technical information including pin configurations for different packages (PDIP/SOIC, MLF), block diagrams, register summaries with bit definitions, and operating conditions. It covers specific models ATtiny13V (operating at 0-4 MHz) and ATtiny13 (operating up to 20 MHz depending on voltage).
Atmel ATTINY13 specifications
| Architecture | Advanced RISC Architecture |
|---|---|
| Flash Memory Size | 1K Bytes |
| EEPROM Size | 64 Bytes |
| SRAM Size | 64K Bytes |
| ADC Channels | 4-channel, 10-bit |
| Operating Voltage (ATtiny13V) | 1.8 - 5.5V |
| Max Speed (ATtiny13V @ 2.7-5.5V) | 0 - 10 MHz |
| Max Speed (ATtiny13 @ 4.5-5.5V) | 0 - 20 MHz |
| Active Mode Current (1MHz, 1.8V) | 240nA |
All Atmel ATTINY13 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the operating voltage range for the ATtiny13V?
The ATtiny13V operates at a voltage range of 1.8 - 5.5V.
Does the ATtiny13 include an internal oscillator?
Yes, it includes a programmable Watchdog Timer with a separate On-chip Oscillator.
What is the operating voltage range for the ATtiny13?
The ATtiny13 operates from 2.7 V to 5.5 V, while the ATtiny13V variant works from 1.8 V to 5.5 V.
From: Atmel ATtiny13 Datasheet
How much flash memory does the ATtiny13 provide?
It provides 1 KB of in‑system programmable flash program memory.
From: Atmel ATtiny13 Datasheet
What is the flash memory size of the ATtiny13?
The ATtiny13 provides 1 KB of in‑system programmable Flash memory.
How many I/O pins does the ATtiny13 have?
It has six programmable I/O pins available in the 8‑pin PDIP/SOIC package.
