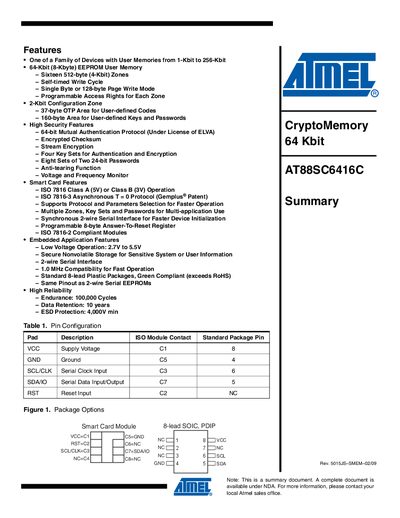

Atmel AT88SC6416C Datasheet Handbook
The AT88SC6416C is a CryptoMemory® secure EEPROM offering 64 Kbit (8 Kbyte) of user memory divided into sixteen 512‑byte zones. It provides high‑security features such as mutual authentication, stream encryption, and programmable access rights, making it suitable for embedded applications that require protected non‑volatile storage.
The document includes pin‑out tables, DC and AC electrical characteristics, timing diagrams for 2‑wire serial communication, and details on user zones, configuration memory, and revision history. It also lists mechanical package options and contact information for Atmel support.
Atmel AT88SC6416C specifications
| User Memory Size | 64 Kbit (8 Kbyte) |
|---|---|
| Number of Zones | 16 zones of 512 bytes each |
| Endurance | 100,000 write cycles |
| Data Retention | 10 years |
| ESD Protection | 4,000 V min |
| Write Cycle Time (25 °C) | 5 ms |
All Atmel AT88SC6416C documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
How many user zones does the AT88SC6416C have and how large is each zone?
It has 16 user zones, each 512 bytes (4 Kbit) in size.
What is the endurance (write‑cycle rating) of the AT88SC6416C?
The EEPROM is rated for 100,000 write cycles.
What memory sizes are available in the AT88SC0104CRF to AT88SC6416CRF family?
The family offers user memories ranging from 1 Kbit up to 64 Kbit.
From: Atmel AT88SC0104CRF to AT88SC6416CRF CryptoRF Security Chips Handbook
What is the communication frequency and standard compliance of these CryptoRF chips?
They operate at 13.56 MHz and are compliant with ISO/IEC 14443 Type B.
From: Atmel AT88SC0104CRF to AT88SC6416CRF CryptoRF Security Chips Handbook
