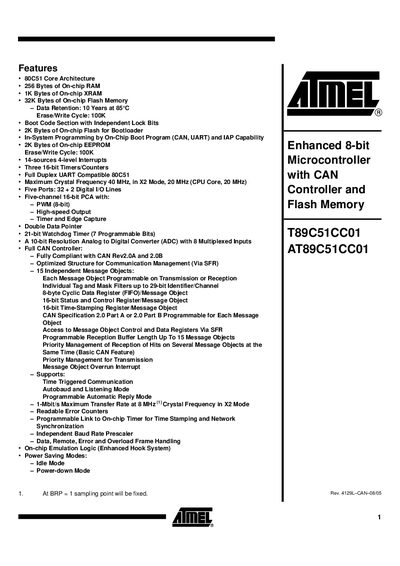

ATMEL T98C51CC01 Data Sheet
The T89C51CC01 is an 8‑bit microcontroller from Atmel’s CANary family, featuring 32 KB of flash, 256 B of RAM, 2 KB of EEPROM, a 10‑bit ADC with eight multiplexed inputs, and a full CAN controller compliant with CAN 2.0A/B. It supports a wide range of packages (VQFP44, PLCC44, CA‑BGA64) and operates from 3 V to 5.5 V in an industrial temperature range.
The device includes three 16‑bit timers, five ports (32 I/O lines), a 21‑bit watchdog, and on‑chip emulation logic. It offers in‑system programming via CAN, UART, and IAP, and provides up to 1 Mbit/s CAN transfer rate when driven by an 8 MHz crystal.
Atmel T89C51CC01 specifications
| Core Architecture | 80051 |
|---|---|
| On‑chip RAM | 256 Bytes |
| On‑chip XRAM | 1 KB |
| Flash Memory | 32 KB |
| EEPROM | 2 KB |
| ADC Resolution | 10‑bit |
| ADC Channels | 8 multiplexed inputs |
| Maximum Crystal Frequency | 40 MHz (X2 mode 20 MHz core) |
| CAN Transfer Rate | 1 Mbit/s (at 8 MHz crystal) |
| Operating Voltage | 3 V to 5.5 V |
| Temperature Range | -40 °C to +85 °C (Industrial) |
| Package Options | VQFP44, PLCC44, CA‑BGA64 |
Source: ATMEL T98C51CC01 Data Sheet
