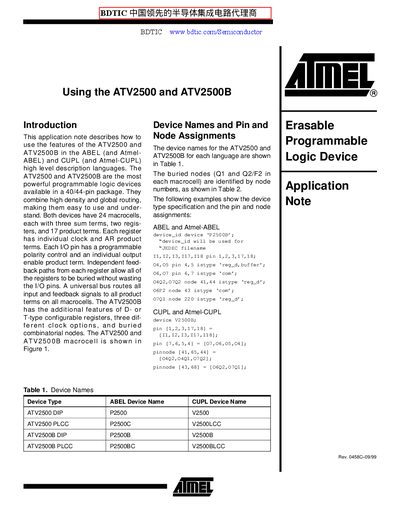

Atmel ATV2500 and ATV2500B Application Note
The document introduces the ATV2500 and ATV2500B programmable logic devices, describing their 40/44‑pin packages, 24 macrocells, and the macrocell architecture with sum terms, registers, and product terms. It shows how each I/O pin provides programmable polarity control and an individual output‑enable term.
Detailed sections cover macrocell configurations, asynchronous reset, synchronous preset groups, clock options, and the ability of the ATV2500B to use D‑type or T‑type registers. A sample CUPL simulation input file and example code snippets for both ABEL and CUPL are provided.
Atmel ATV2500 specifications
| Package | 40/44‑pin |
|---|---|
| Macrocells | 24 |
| Sum terms per macrocell | 3 |
| Registers per macrocell | 2 |
| Product terms per macrocell | 17 |
| I/O pin polarity control | Programmable |
| Output enable per I/O pin | Individual product term |
| Clock options (ATV2500B) | Three different options |
| Buried combinatorial nodes (ATV2500B) | Supported |
