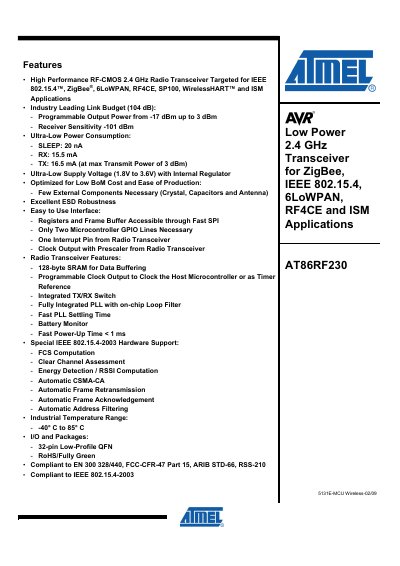

Atmel AT86RF230 Wireless Transceiver Datasheet
Datasheet 98 pages · 1.2 MB · EN
The AT86RF230 is a low-power 2.4 GHz radio transceiver designed for IEEE 802.15.4, ZigBee, 6LoWPAN, RF4CE, SP100, WirelessHART, and ISM applications. It features a high-performance RF-CMOS design with an industry-leading link budget of 104 dB, programmable output power from -17 dBm to 3 dBm, and receiver sensitivity of -101 dBm. The device offers ultra-low power consumption, with sleep current as low as 20 nA and transmit current of 16.5 mA at maximum power.
Read onlineAtmel AT86RF230 specifications
| Operating Frequency | 2.4 GHz |
|---|---|
| Link Budget | 104 dB |
| Output Power Range | -17 dBm to 3 dBm |
| Receiver Sensitivity | -101 dBm |
| Supply Voltage | 1.8V to 3.6V |
| Sleep Current | 20 nA |
| Receive Current | 15.5 mA |
| Transmit Current | 16.5 mA |
| Frame Buffer Size | 128 bytes |
| Operating Temperature | -40° C to 85° C |
| Package Type | 32-pin Low-Profile QFN |
All Atmel AT86RF230 documents by type
Datasheet 1
Ratings, dimensions and ordering codes, for selection and design work.
Other documents 1
Questions answered in these manuals
What wireless protocols does the AT86RF230 support?
The device supports IEEE 802.15.4, ZigBee, 6LoWPAN, RF4CE, SP100, WirelessHART, and ISM applications.
What is the minimum supply voltage for the AT86RF230?
The device operates with an ultra-low supply voltage ranging from 1.8V to 3.6V.
