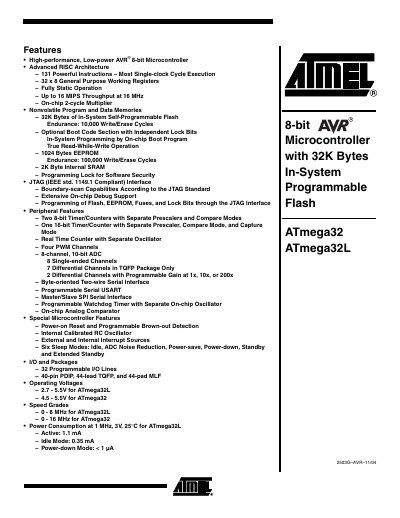

Atmel ATmega32/ATmega32L User Manual
The ATmega32 and ATmega32L are low‑power 8‑bit AVR microcontrollers featuring up to 32 KB of in‑system programmable Flash, 1 KB EEPROM, 2 KB SRAM, and a rich peripheral set including timers, PWM, ADC, USART, SPI and JTAG. They operate from 2.7 V to 5.5 V (ATmega32L) or 4.5 V to 5.5 V (ATmega32) and can deliver up to 16 MIPS at 16 MHz.
This manual covers the device’s pin‑out diagrams, detailed pin descriptions, core architecture, register set, status register, programming options, and example code. It also includes electrical specifications, power‑saving modes, and reference information for developers writing firmware for these microcontrollers.
Atmel ATMEGA32 specifications
| Flash Memory | 32 KB |
|---|---|
| EEPROM | 1 KB |
| SRAM | 2 KB |
| Operating Voltage (ATmega32L) | 2.7 V – 5.5 V |
| Operating Voltage (ATmega32) | 4.5 V – 5.5 V |
| Maximum Throughput | 16 MIPS at 16 MHz |
| ADC | 8‑channel, 10‑bit |
| Programmable I/O Lines | 32 |
All Atmel ATMEGA32 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the size of the flash memory in the ATmega32/ATmega32L?
The device includes 32 KB of in‑system self‑programmable Flash memory.
What are the operating voltage ranges for the ATmega32 and ATmega32L?
ATmega32L operates from 2.7 V to 5.5 V, while ATmega32 operates from 4.5 V to 5.5 V.
What is the size of the flash memory in the ATmega32?
The ATmega32 provides 32 Kbytes of In‑System Programmable Flash memory.
What voltage range does the ATmega32L operate at?
The ATmega32L operates from 2.7 V to 5.5 V.
