Start here

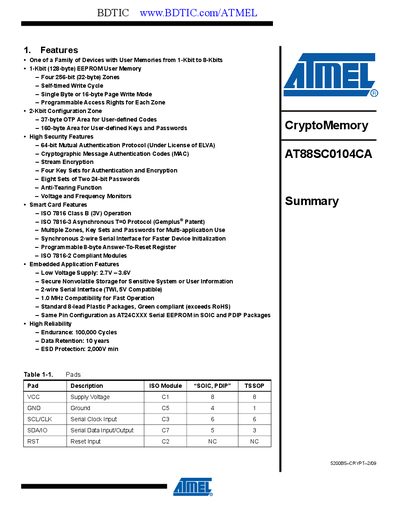

Atmel AT88SC0104CA CryptoMemory Datasheet
The AT88SC0104CA is a high‑performance secure memory offering 1 Kbit (128‑byte) EEPROM user memory divided into four 32‑byte zones with programmable access rights. It includes advanced security functions such as a 64‑bit mutual authentication protocol, MAC, stream encryption, four key sets and eight password sets, as well as ISO‑7816 smart‑card compatibility.
The device operates from a 2.7 V to 3.6 V supply, supports both asynchronous T=0 and synchronous 2‑wire interfaces, and is available in standard 8‑lead SOIC, PDIP and TSSOP packages. Absolute maximum ratings, DC and AC characteristics, and timing diagrams are provided for design integration.
Atmel AT88SC0104CA specifications
| User Memory Size | 1 Kbit (128 bytes) |
|---|---|
| Memory Zones | Four 256‑bit (32‑byte) zones |
| Async Read Supply Current (3.57 MHz) | 5 mA |
| Standby Current | 100 µA |
| Number of Key Sets | Up to 4 |
| Package Types | 8‑lead SOIC, PDIP, TSSOP |
All Atmel AT88SC0104CA documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the user memory size of the AT88SC0104CA?
It provides 1 Kbit (128 bytes) of EEPROM user memory.
How many key sets can be used for authentication and encryption?
Up to four unique key sets are supported.
What memory capacities are offered in the AT88SC CryptoMemory family?
The family provides user memories ranging from 1 Kbit up to 256 Kbits, including 1K, 2K, 4K, 8K, 16K, 32K, 64K, 128K, and 256K devices.
From: Atmel AT88SC0104C‑AT88SC25616C CryptoMemory Secure Serial ICs Handbook
How fast can the CryptoMemory interface operate?
The 2‑wire serial interface can run at speeds up to 1.5 MHz.
From: Atmel AT88SC0104C‑AT88SC25616C CryptoMemory Secure Serial ICs Handbook
