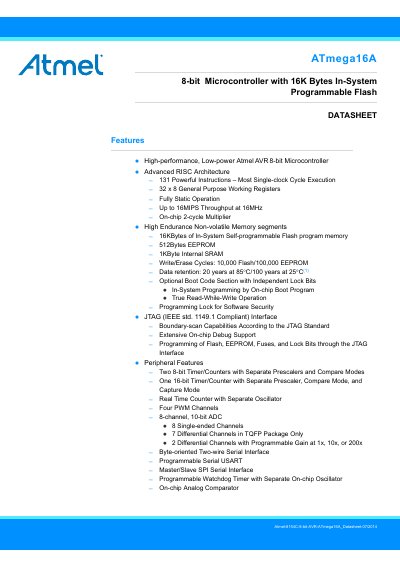

Atmel ATmega16A 8-bit Microcontroller Datasheet
The ATmega16A is a low‑power CMOS 8‑bit microcontroller based on Atmel's AVR enhanced RISC architecture. It offers up to 16 MIPS at 16 MHz, 16 KB of flash, 512 B EEPROM, 1 KB SRAM, and a rich set of peripherals including multiple timers, a 10‑bit ADC, USART, SPI, I²C, and JTAG debugging.
The document details pin‑out for PDIP, TQFP and QFN/MLF packages, electrical limits (2.7‑5.5 V, 0‑16 MHz), power‑down consumption (<1 µA), and extensive register descriptions. It also covers programming methods, boot‑loader support, and timing diagrams for all major modules.
Atmel ATmega16A specifications
| Flash program memory | 16 KB |
|---|---|
| EEPROM | 512 B |
| SRAM | 1 KB |
| Operating voltage | 2.7 V – 5.5 V |
| Maximum clock speed | 16 MHz |
| Active power consumption (1 MHz, 3 V, 25 °C) | 0.6 mA |
| Idle mode power consumption | 0.2 mA |
| Power‑down mode current | < 1 µA |
| Programmable I/O lines | 32 |
| Package options | 40‑pin PDIP, 44‑lead TQFP, 44‑pad QFN/MLF |
| ADC resolution | 10‑bit |
| Timer/Counters | Two 8‑bit, one 16‑bit |
All Atmel ATmega16A documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the flash memory size of the ATmega16A?
The ATmega16A provides 16 KB of In‑System Self‑programmable Flash program memory.
What voltage range does the ATmega16A operate at?
It operates from 2.7 V up to 5.5 V.
What is the flash memory capacity of the ATmega16?
The ATmega16 includes 16 KBytes of In‑System Self‑programmable Flash program memory.
From: ATMEL Microcontroller with 16K Bytes In-System Programmable Flash ATmega16 ATmega16L Manual
How much current does the ATmega16L draw in active mode?
In active mode at 1 MHz and 3 V, the ATmega16L consumes about 1.1 mA.
From: ATMEL Microcontroller with 16K Bytes In-System Programmable Flash ATmega16 ATmega16L Manual
How much flash memory does the ATmega16 have?
It provides 16 KB of In‑System Self‑Programmable Flash program memory.
What are the operating voltage ranges for ATmega16 and ATmega16L?
ATmega16L operates from 2.7 V to 5.5 V, while ATmega16 operates from 4.5 V to 5.5 V.
