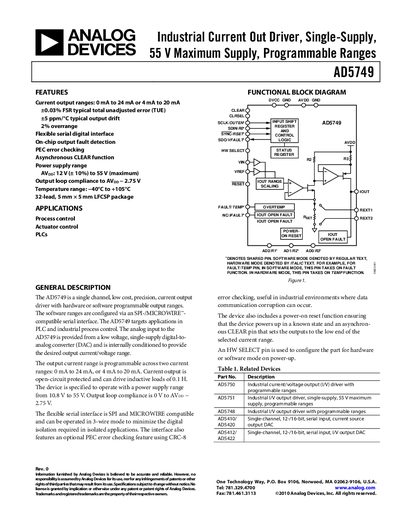

The document provides information about the AD5749 industrial current output driver. The product features a single-supply design, a maximum supply of 55V, and programmable ranges.
The AD5749 is a low‑cost, precision, single‑channel current‑output driver designed for PLC and industrial process‑control applications. It accepts a 0‑4.096 V analog input and provides programmable current ranges via a SPI/MICROWIRE‑compatible serial interface.
Key features include two selectable current ranges (0‑24 mA or 4‑20 mA), a wide power‑supply range of 12 V to 55 V, on‑chip fault detection, PEC error checking, and an asynchronous CLEAR function. The device can drive inductive loads up to 0.1 H and operates from –40 °C to +105 °C.
| Power Supply Range (AVop) | 12 V (+10 %) to 55 V |
|---|---|
| Operating Temperature Range | -40 °C to +105 °C |
| Output Loop Compliance | 0 V to AVpp – 2.75 V |
| Input Voltage Range | 0 V to 4.096 V |
The device operates from 12 V (+10 %) up to 55 V.
The AD5749 is rated from –40 °C to +105 °C.
It uses a SPI/MICROWIRE‑compatible serial digital interface.
