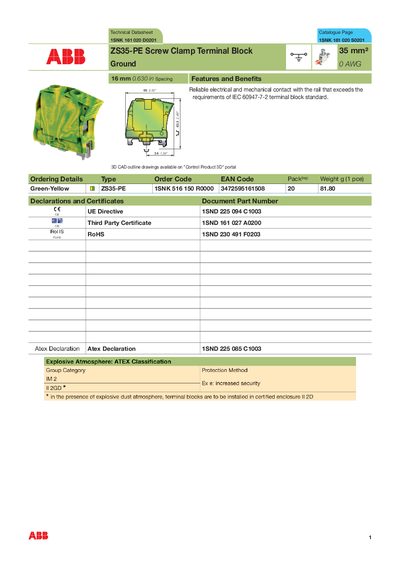

ZS35-PE Screw Clamp Terminal Block 35 mm² Ground 0 AWG 16 mm Spacing.
The ABB ZS35-PE terminal block is designed to meet IEC 60947‑7‑2 standards for reliable electrical and mechanical contact. It includes detailed information on protection rating, material specifications, and wiring capacities.
The document provides electrical characteristics such as rated short‑time withstand current, temperature ranges for storage and installation, and environmental test results. An accessories compatibility table lists end stops, circuit separators, protecting covers and other optional parts.
| IP protection rating | IP20 |
|---|---|
| Insulating material | Polyamide |
| Flammability rating | UL94 VO |
| Rated short‑time withstand current (1 s) | 4200 A |
| Storage temperature range | -55 °C to +110 °C |
| Installation temperature range | -5 °C to +40 °C |
| Wire stripping length | 17 mm (0.669 in) |
| Torque (screw clamp) | 2.65 Nm (23.5 Ib·in) |
The ZS35-PE terminal block has an IP20 protection rating.
The insulating material is polyamide.
It can withstand a short‑time current of 4200 A for 1 second.
The storage temperature range is –55 °C to +110 °C.
