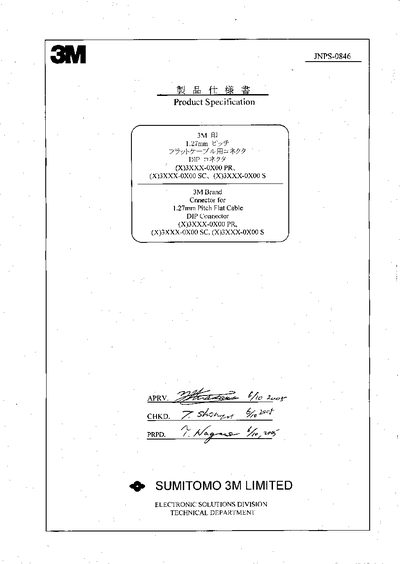

This document describes the functions, compatible objects, related specification drawings, related test standards, application, quality performance, and plating specification indication on the JNPS-0846i connector. The connector has various functions and features, is suitable for specific objects, and complies with relevant specifications and test standards.
The JNPS-0846 connector is designed for IDC (Insulation Displacement Connector) connection with 1.27 mm pitch flat cable. It provides electrical connection between cable and PCB or compatible IC sockets, featuring two rows of plural U‑elements on the top side and two rows of contact tails on the bottom side.
The connector is rated for 10 A maximum current, 250 V AC (300 V DC) voltage, and operates from –55 °C to 105 °C. It is available with various plating suffixes (PR, SC, S) and packaged in plastic trays and carton boxes. Recommended storage conditions are 5 °C‑35 °C ambient temperature and 40 %‑70 % relative humidity.
| Current rating | 10 A Max. |
|---|---|
| Voltage rating | AC 250 V Max., DC 300 V Max. |
| Operating temperature range | -55 °C ~ 105 °C |
| Cable pitch | 1.27 mm |
| Wire accommodation | 28 AWG stranded |
| Board thickness tolerance | 1.6 mm + 0.2 mm |
| Through‑hole diameter | 1.0 mm + 0.1 mm |
| Contact quantity (14‑position version) | 14 pins, 7.62 mm row spacing |
The connector is rated for a maximum current of 10 A.
It supports up to 250 V AC and 300 V DC.
Store it at ambient temperature 5 °C‑35 °C and relative humidity 40 %‑70 %.
The suffix “PR” denotes gold flash plating on both the U‑element area and the tail area.
