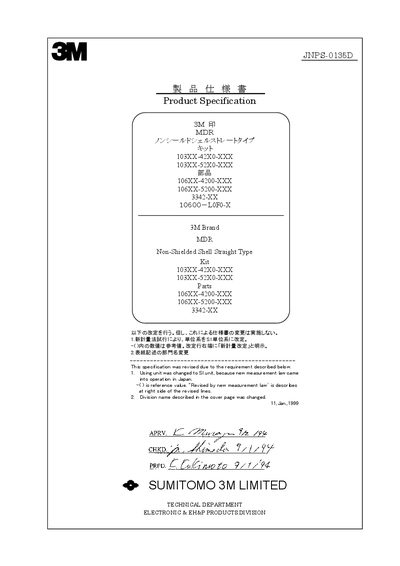

This document is the product specification for 3M Brand MDR Non-Shielded Shell Straight Type Kit 103XX-42X0-XXX 103XX-52X0-XXX Parts 106XX-4200-XXX 106XX-5200-XXX 3342-XX. It describes the product's function, applicable object, related specifications, application, quality performance, package & identify, storage, etc.
The JNPS-0135D is a non‑shielded shell kit for 1/0 connectors that can be fixed to MDR plug connectors (101XX series) and MDR receptacle connectors (102XX series). It provides cable clamping, optional grounding, and is supplied in various jack‑screw and latch configurations.
The document lists technical data such as recommended tightening torques, temperature range, cable outer‑diameter limits, panel‑thickness limits, and quality performance values, as well as packaging, labeling, and storage requirements. This manual is written in Japanese.
| Recommended tightening torque (L30 type) | 0.196+0.049 N·m (2.0+0.5 kgf·cm) |
|---|---|
| Recommended tightening torque (L26 type) | 0.196+0.049 N·m (2.0+0.5 kgf·cm) |
| Cable outer diameter (14P) | 7.0 mm min @80mm max |
| Maximum panel thickness | ≤2.0 mm (including washer) |
| Latch retention force (Y direction) | 8.4 N |
