Start here

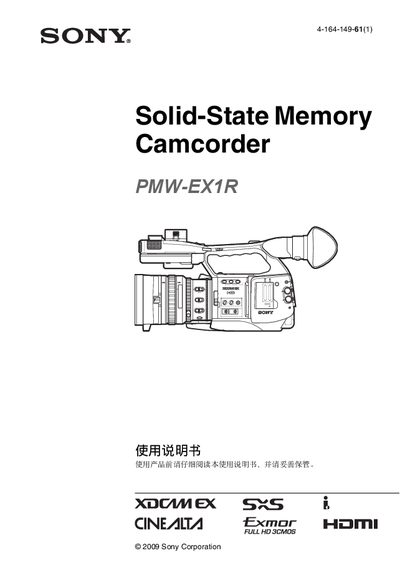

Sony PMW-EX1R Camcorder User Manual
This manual covers safety precautions such as keeping the camcorder dry and avoiding high‑volume listening, as well as basic setup steps like powering the unit, inserting SxS memory cards, and connecting external hard drives. Detailed instructions are provided for recording, playback, menu navigation, and using features like zoom, white‑balance, and time‑code.
Additional sections describe how to format memory cards, adjust audio levels, use the infrared remote, and connect external devices via iLINK. The document ends with specifications, troubleshooting tips, and regulatory information. This manual is written in Chinese.
SONY PMW-EX1R specifications
| Weight | ≈2.0 kg |
|---|---|
| Power consumption | ≈12 W |
| Operating temperature | +5 °C – 40 °C |
| Storage temperature | -20 °C – 60 °C |
| Recording format | MPEG‑2 Long GOP |
| HG mode bitrate | VBR, up to 35 Mbps |
| SP mode bitrate | CBR, 25 Mbps |
| Audio format | Linear PCM, 2‑channel, 48 kHz |
| Maximum recording time (HG, 32 GB SxS PRO) | ≈100 min |
| Maximum recording time (SP, 32 GB SxS PRO) | ≈140 min |
| Maximum frame rate (slow/fast motion) | 1 – 60 fps (720 p), 1 – 30 fps (1080 p) |
All SONY PMW-EX1R documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How long can you record in HG mode with a 32 GB SxS PRO card?
Approximately 100 minutes of recording time in HG mode with a 32 GB SxS PRO card.
What is the maximum frame rate available for slow‑motion in 1080 p mode?
Up to 60 fps can be selected for slow‑motion in 1080 p mode.
How can I prevent fire or electric‑shock hazards?
Do not expose the camcorder to rain or moisture.
What should I do to avoid hearing damage when using headphones?
Avoid listening at high volume for long periods.
