Key facts
- Brand
- SONY
- Model
- PDW-F75
- Category
- Camcorders
- Industry
- Electronics
- Documents
- 2
- Languages
- ZH
- Last added
- 2012-03-24
Start here

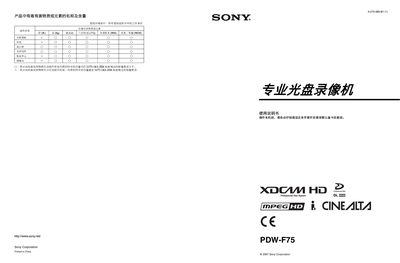

Sony PDW-F75 Professional Light Plate Video Player User Manual
This manual covers safety precautions, such as keeping the unit dry, grounding it, and avoiding opening the chassis, as well as laser safety information. It also explains the main features of the PDW-F75, including HD recording, multiple bitrate options, and support for various video standards.
The guide details system setup, connection of external monitors and iLINK, operation of recording and playback functions, scene selection, file handling, and optional expansion cards. Interface specifications for HDSDI, SDSDI, AES/EBU, iLINK, and analog video/audio are also provided. This manual is written in Chinese.
SONY PDW-F75 specifications
| Laser Class | Class 1 |
|---|---|
| Laser Wavelength | 400‑410 nm |
| Laser Output Power (continuous) | 65 mW |
| Supported Video Frame Rates | 1080/59.94, 50i, 29.97PsF, 25PsF, 23.98PsF |
| Video Bitrates | 35 Mbps (HQ), 25 Mbps (SP), 18 Mbps (LP) |
| Primary Video Interface | HDSDI (4‑channel) |
Source: Sony PDW-F75 Professional Light Plate Video Player User Manual
All SONY PDW-F75 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What laser class is the PDW‑F75 classified as?
The device is classified as a Class 1 laser product.
From: Sony PDW-F75 Professional Light Plate Video Player User Manual
Which video bitrates can be selected on the PDW‑F75?
The unit offers three bitrate options: 35 Mbps for high‑quality, 25 Mbps for standard, and 18 Mbps for long‑play mode.
From: Sony PDW-F75 Professional Light Plate Video Player User Manual
