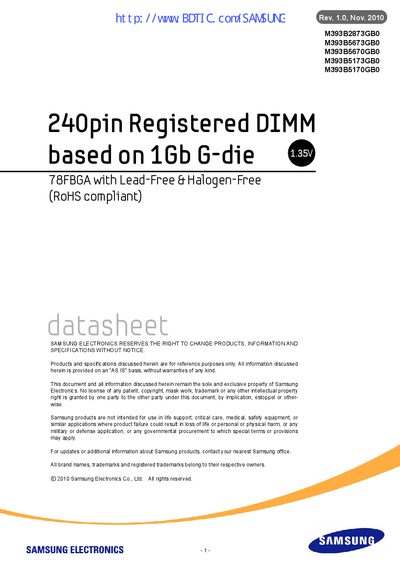

This document is a specification sheet for Samsung Electronics products, describing the features and characteristics of models such as M393B2873GB0 M393B5670GB0.
This document provides detailed technical information for Samsung's M393B2873GB0 DDR3L Registered DIMM. It includes ordering data, key features, pin configurations, thermal sensor details, and electrical characteristics such as voltage ranges and timing parameters.
The handbook also lists physical dimensions, module density options, and compatibility notes for DDR3‑800, DDR3‑1066, DDR3‑1333 and DDR3‑1600 speed grades, making it a comprehensive reference for designers and system integrators.
| Pin count | 240 pins |
|---|---|
| Operating voltage | 1.35 V (1.28 V–1.45 V) and 1.5 V (1.425 V–1.575 V) |
| Supported DDR3 speed grades | DDR3‑800, DDR3‑1066, DDR3‑1333, DDR3‑1600 |
| Programmable CAS latency | 6‑11 |
It operates at the JEDEC standard 1.35 V (range 1.28 V–1.45 V) and also supports 1.5 V (1.425 V–1.575 V).
The module uses a 240‑pin Registered DIMM form factor.
The DIMM supports DDR3‑800, DDR3‑1066, DDR3‑1333 and DDR3‑1600 speed grades.
Yes, all Samsung RDIMMs, including this model, support an on‑DIMM thermal sensor.
