This document is about Samsung M392B5773CH0 M392B5270CH0 240pin VLP Registered DIMM's datasheet, which provides detailed information about the product's features and characteristics.

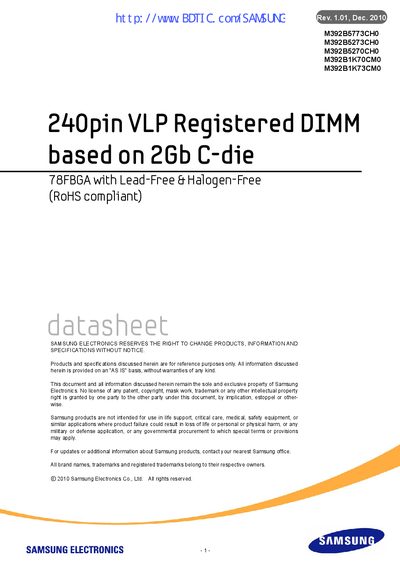

The document describes Samsung's 240‑pin VLP Registered DIMM family based on 2 Gb C‑die technology. The M392B1K70CM0 part is an 8 GB, 1Gx72 DDP module that complies with RoHS (78FBGA, lead‑free, halogen‑free) and includes a thermal sensor on the DIMM.
Key features include support for DDR3‑800/1066/1333/1600 data rates, programmable CAS latency (6‑11), on‑die termination, and detailed pin‑out, electrical, and timing specifications. The datasheet also provides mechanical dimensions, heat‑spreader design guidance, and absolute maximum ratings.
| Pin count | 240 pins |
|---|---|
| Capacity | 8 GB |
| Organization | 1Gx72 DDP |
| Supported DDR3 speeds | DDR3‑800, DDR3‑1066, DDR3‑1333, DDR3‑1600 |
| Operating voltage | 1.5 V ±0.075 V (JEDEC) |
| Programmable CAS latency | 6‑11 |
| Thermal sensor | Integrated on DIMM |
| RoHS compliance | Lead‑free, halogen‑free |
It uses a 240‑pin VLP Registered DIMM layout.
The module supports DDR3‑800, DDR3‑1066, DDR3‑1333 and DDR3‑1600.
It operates at 1.5 V with a ±0.075 V tolerance per JEDEC.
Yes, all Samsung RDIMMs, including this part, have an integrated thermal sensor.
