Key facts
- Brand
- Samsung
- Model
- 16MX16
- Documents
- 2
- Languages
- EN
- Last added
- 2012-04-01
Start here

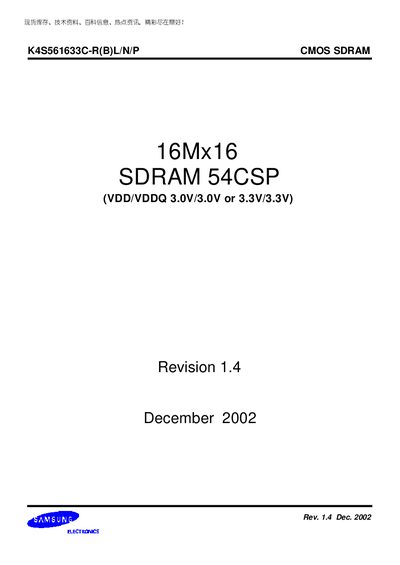

Samsung K4S561633C-R(B)L/N/P 16Mx16 SDRAM 54CSP Datasheet
The document provides a detailed description of the K4S561633C-R(B)L/N/P CMOS SDRAM, a 4M × 16‑bit synchronous DRAM organized in four banks and packaged in a 54‑ball CSP. It lists features such as 3.0 V/3.3 V operation, selectable CAS latency, and various burst lengths.
Key sections include functional block diagrams, pin configurations, absolute maximum ratings, DC and AC operating conditions, and timing parameters. The data sheet also contains ordering information, package dimensions, and a simplified truth table for command encoding.
Samsung 16MX16 specifications
| Data organization | 4M × 16 bits (16 Mx 16) |
|---|---|
| Package type | 54‑ball CSP |
| Supply voltage (VDD) | 2.7 V – 3.6 V |
| Power dissipation | 1 W |
| Storage temperature range | -55 °C – +150 °C |
| CAS latency options | 1, 2, 3 |
| Burst length options | 1, 2, 4, 8, Full page |
| Operating frequency (typical) | 105 MHz (GL=2) |
Source: Samsung K4S561633C-R(B)L/N/P 16Mx16 SDRAM 54CSP Datasheet
All Samsung 16MX16 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the recommended supply voltage range for the K4S561633C SDRAM?
The recommended supply voltage is 2.7 V to 3.6 V.
From: Samsung K4S561633C-R(B)L/N/P 16Mx16 SDRAM 54CSP Datasheet
What are the available CAS latency settings?
The device supports CAS latency values of 1, 2, or 3.
From: Samsung K4S561633C-R(B)L/N/P 16Mx16 SDRAM 54CSP Datasheet
What supply voltage range does the K4S561633C-R(B)L/N/P require?
The device operates with a supply voltage from 2.7 V minimum to 3.6 V maximum, with a typical value of 3.0 V.
From: Samsung K4S561633C-R(B)L/N/P 16Mx16 SDRAM 54CSP Datasheet
What is the maximum operating frequency of this SDRAM?
The SDRAM can run up to 133 MHz when CAS latency is set to 3.
From: Samsung K4S561633C-R(B)L/N/P 16Mx16 SDRAM 54CSP Datasheet
