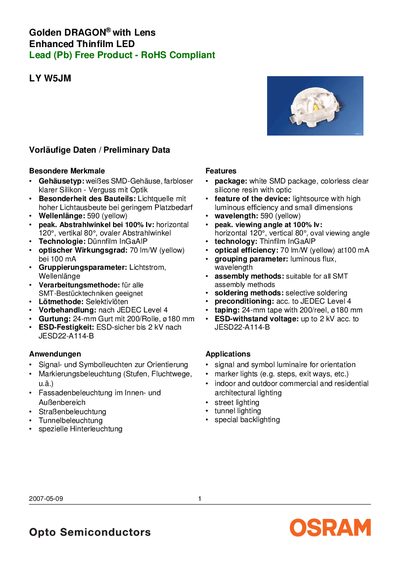

OSRAM LY W5JM Golden DRAGON LED Datasheet
The LY W5JM Golden DRAGON LED is a white SMD package with a colorless clear silicone resin and a thin‑film InGaAlP structure. It emits yellow light at a peak wavelength of 590 nm with an optical efficiency of up to 70 lm/W at 100 mA.
The component is designed for SMT assembly, supports selective soldering, and complies with JEDEC Level 4 pre‑conditioning. It is RoHS‑compliant, lead‑free, and suitable for a wide range of lighting applications such as signal and symbol luminaire, architectural lighting, street, tunnel and back‑lighting. This manual is written in German.
Osram W5JM specifications
| Operating temperature range | -40 °C to +85 °C |
|---|---|
| Storage temperature range | -40 °C to +100 °C |
| Junction temperature | +125 °C |
| Surge current | 2000 mA |
| Horizontal viewing angle | 120° |
| Optical efficiency (typical, 100 mA) | 70 lm/W (yellow) |
