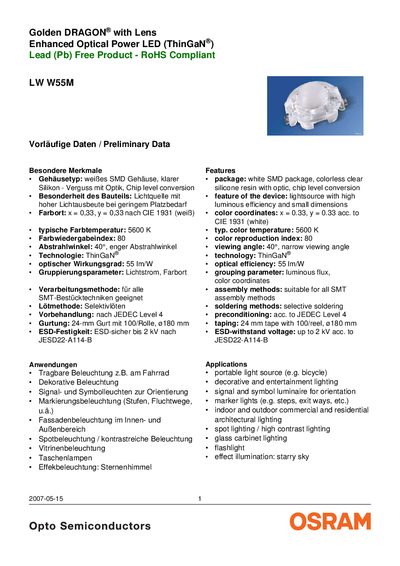

OSRAM LW W55M LED Datasheet
The LW W55M is a thin‑GaN LED with high luminous efficiency and a compact SMD package. It is RoHS‑compliant and suitable for SMT assembly, offering a typical optical efficiency of 55 Im/W and a narrow 40° viewing angle.
The component is designed for a wide range of lighting applications, from portable bicycle lights to architectural and decorative illumination. Detailed specifications, ordering information, and safety notes are provided for designers and integrators. This manual is written in German.
Osram W55M specifications
| Operating temperature range | -40 °C … +85 °C |
|---|---|
| Storage temperature range | -40 °C … +100 °C |
| Junction temperature | 125 °C |
| Typical forward voltage | 3.2 V |
| Optical efficiency | 55 Im/W |
| Viewing angle | 40° |
| Color coordinate x | 0.33 |
